Excellent Series CMM

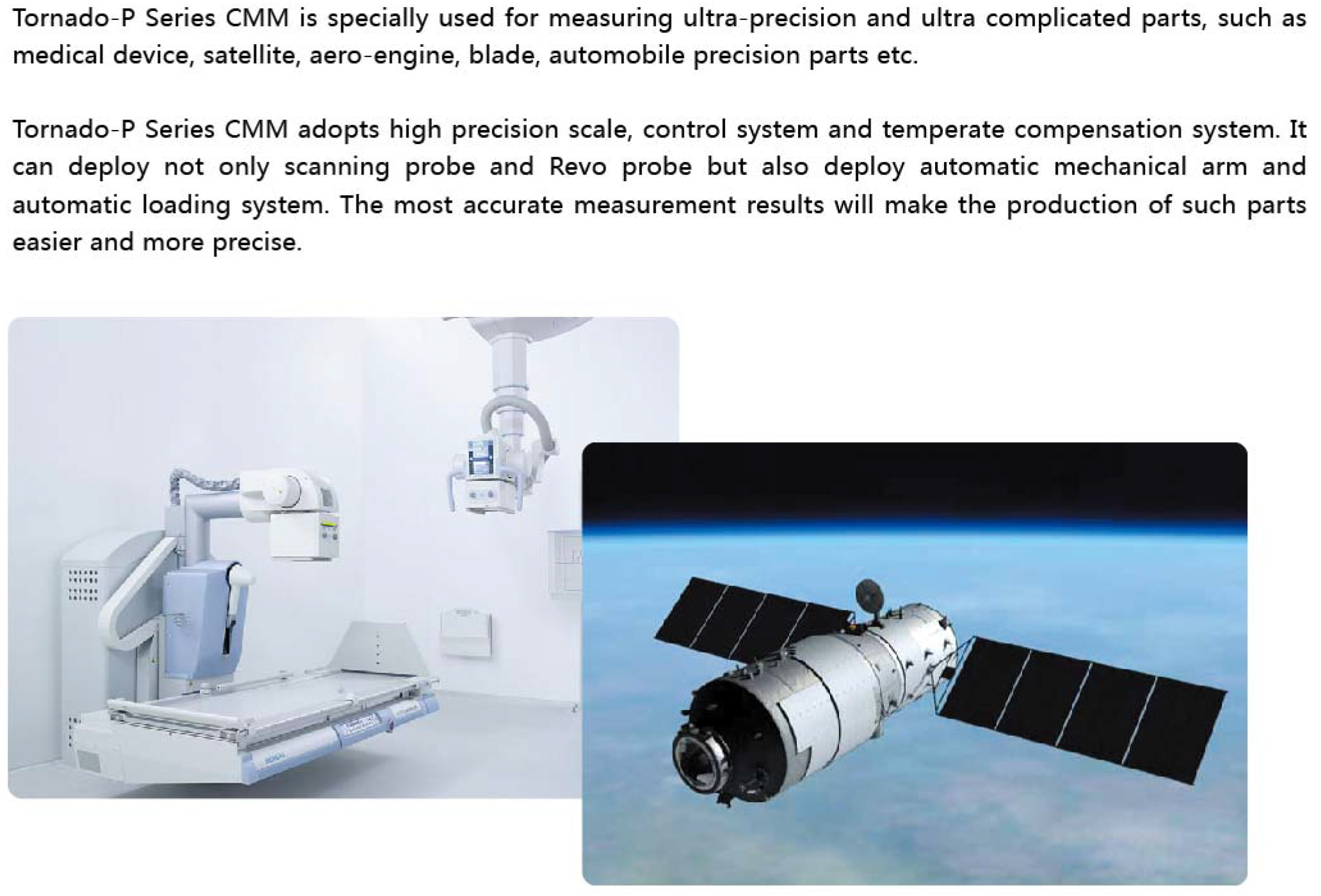

Tornado-P Series CMM is specially used for measuring ultra-precision and ultra complicated parts, such as medical device, satellite, aero-engine, blade, automobile precision parts etc.

Tornado-P Series CMM adopts high precision scale, control system and temperate compensation system. It can deploy not only scanning probe and Revo probe but also deploy automatic mechanical arm and automatic loading system. The most accurate measurement results will make the production of such parts easier and more precise.

MODEL	STROKES			ISO10360-2:2001/GB/T16857.2-2006				OVERALL SIZE			WORK ENVELOPE			WEIGHT	PART WEIGHT	3D Max Speed	3D Max Accelerate Speed
	X	Y	Z	P		PH		Lx	Ly	Lz	Wx	Wy	Wz	WEIGHT	PART WEIGHT	3D Max Speed	3D Max Accelerate Speed
	mm	mm	mm	mm	mm	mm	MPEP(μm)	MPEP(μm)	MPEP(um)	MPEP(um)	mm	mm	mm	kg	kg	mm/s	mm/s2
NCE686	600	800	600	1.5+3L/1000	1.5	1.1+3L/1000	1.1	1290	1970	2790	780	1414	830	1560	700	800	1900
NCE8106	800	1000	600	1.7+3L/1000	1.7	1.2+3L/1000	1.2	1490	2170	2790	980	1614	830	1980	1000	800	1900
NCE8156	800	1500	600	1.7+3L/1000	1.7	1.2+3L/1000	1.2	1490	2670	2790	980	2114	830	2650	1000	800	1900
NCE9128	900	1200	800	1.5+3L/1000	1.5	1.0+3L/1000	1.2	1590	2370	3150	1080	1814	980	2380	1800	580	1800
NCE10126	1000	1200	600	1.5+3L/1000	1.5	1.0+3L/1000	1.2	1690	2370	2790	1180	1814	830	2520	1800	580	1800
NCE10128	1000	1200	800	1.9+3L/1000	1.9	1.3+3L/1000	1.3	1690	2370	3150	1180	1814	980	2560	1800	580	1800
NCE10158	1000	1500	800	1.9+3L/1000	1.9	1.3+3L/1000	1.3	1690	2670	3150	1180	2114	980	2950	1800	580	1800
NCE10208	1000	2000	800	1.9+3L/1000	1.9	1.3+3L/1000	1.3	1690	3270	2920	1180	2614	980	3500	1800	580	1800
NCE121510	1200	1500	1000	2.2+3L/1000	2.2	1.7+3L/1000	1.7	1890	2750	3330	1380	2200	1180	3370	2000	500	1100
NCE122010	1200	2000	1000	2.2+3L/1000	2.2	1.7+3L/1000	1.7	1890	3350	3330	1380	2700	1180	4000	2000	500	1100
NCE152010	1500	2000	1000	2.8+3L/1000	2.8	2.0+3L/1000	2.0	2190	3350	3370	1680	2700	1180	5020	3000	500	1100
NCE152210	1500	2200	1200	2.8+3L/1000	2.8	2.0+3L/1000	2.0	2190	3350	3370	1680	2900	1180	5640	3000	500	1100
NCE153010	1500	3000	1000	2.8+3L/1000	2.8	2.0+3L/1000	2.0	2260	4280	3420	1680	3700	1180	8250	3000	450	1100
NCE153512	1500	3500	1200	3.2+3L/1000	3.2	2.7+3L/1000	2.7	2260	4780	3890	1680	4200	1400	9350	3000	450	1100
NCE152515	1500	2500	1500	3.5+3L/1000	3.5	3.0+3L/1000	2.8	2190	3980	4450	1680	3200	1700	6850	3000	400	900
NCE153015	1500	3000	1500	3.5+3L/1000	3.5	3.0+3L/1000	2.8	2260	4410	4470	1680	3830	1700	8520	3000	400	900
NCE163515	1600	3500	1500	3.5+3L/1000	3.5	3.0+3L/1000	2.8	2360	4910	7740	1780	4330	1700	10100	3000	400	900
NCE182510	1800	2500	1000	3.5+3L/1000	3.5	3.0+3L/1000	2.8	2560	3980	3400	1980	3456	1180	8490	3000	400	900
NCE18XX10	1800	XX	1000	from3.5+3L/1000	3.5	3.0+3L/1000	2.8	2560	XX	XX	1980	XX	1180	XX	3000	400	900
NCE18XX15	1800	XX	1500	from3.5+3L/1000	3.5	3.0+3L/1000	3.0	2560	XX	XX	1980	XX	1700	XX	3000	400	900
NCE203015	2000	3000	1500	3.5+3L/1000	3.5	3.0+3L/1000	3.0	2760	4610	4470	2180	4030	1700	11150	3000	400	900
NCE204015	2000	4000	1500	3.5+3L/1000	3.5	3.0+3L/1000	3.0	2760	5610	4470	2180	5030	1700	13150	3000	400	900
